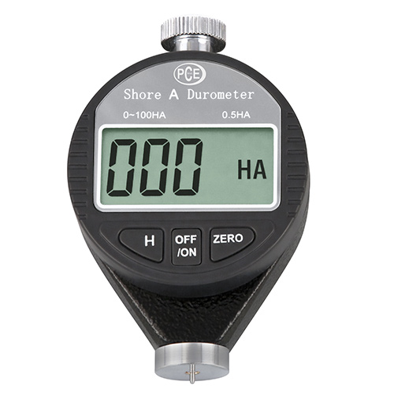

Shore A Durometer
Measurement of hardness for soft materials like rubber
Specification
- Preload: 0.45 Kgf
- Major Load: 8.06 N
- Indenter type- 35° truncated cone indenter
- Type of load- Constant contact pressure

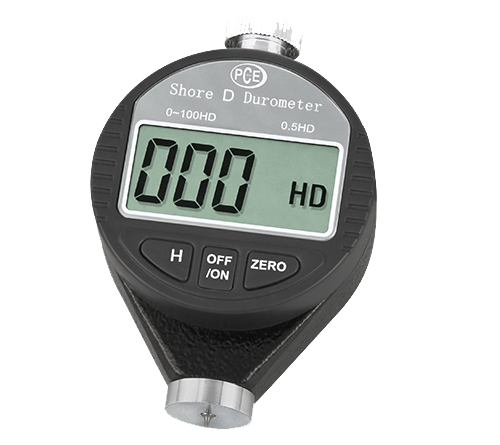

Shore D Durometer
Measurement of harness for hard polymer
Specification
- Preload: 0.45 Kgf
- Major Load: 44.48 N
- Indenter type- 30° cone indenter
- Type of load- Constant contact pressure
Metallography Station Trinolcular Optical Microscope with Camera
To study surface morphology
Specification
- Magnification- 25 X to 1200X
- Focusing: Coarse to fine
- Head: Monocular, binocular/trinocular
- Illumination- Halogen, incident light
- Eye piece: 5X, 10X, 15X and 20 X
- Objective: 5X, 10X 20X and 40X

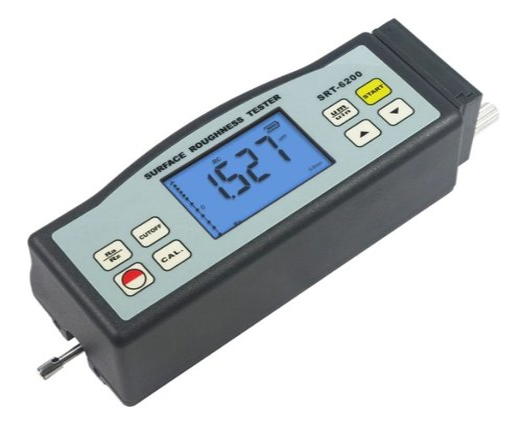

Surface Roughness Tester
Measurement of surface hardness
Specification
- Range: 350 m (-200 m to 150 m)
- Detecting mode: Skid measurement
- Measuring force: 4mN or 0.75 mN (Low force type)
- Stylus tip: Diamond, 900/mR (600/2mR: low force type)
- Travelling length : 6 mm
- Evolution length (mm) : 1.25, 4.0

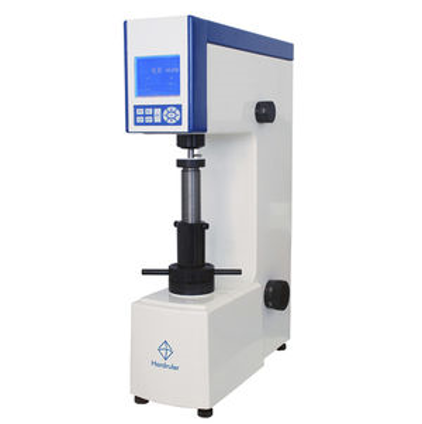

Superficial Rockwell Tester
Specification
- Range: 350 um (-200 um to 150 um)
- Detecting mode: Skid measurement
- Measuring force: 4mN or 0.75 mN (Low force type)
- Stylus tip: Diamond, 900/mR (600/2mR: low force type)
- Travelling length : 6 mm
- Evolution length (mm) : 1.25, 4.0

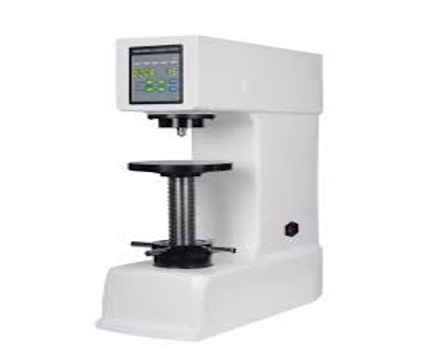

Brinell Hardness Tester
Brinell hardness test of Metals
Specification
- Preload: 250 Kgf
- Major Load - 250-3000 Kgf in range of 250 Kgf250, 500, 750, 1000, 1250, 1500 Kgf
- Maximum test height- 410 mm
- Depth of throat- 205 mm
- Max depth of spindle below base – 180 mm
- Steel ball diameter (Indentor)- 10 mm , 5 mm, 2.5 mm

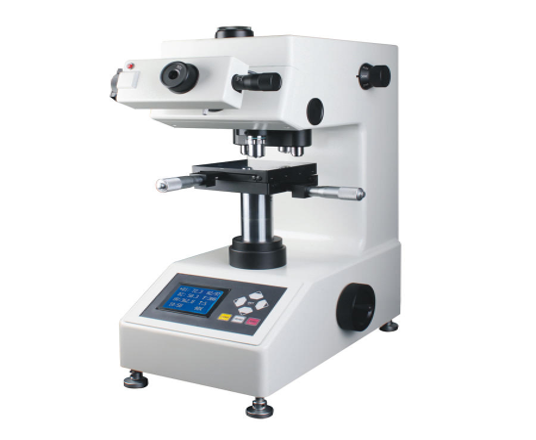

Vickers Hardness Tester
Vickers hardness tester of metals
Specification
- Load- 5 Kgf to 50 Kgf
- 30, 40, 50 Kgf (loads 5, 10, 15, 20 not working properly)
- Indentor – diamond
- Magnification- 25 X
